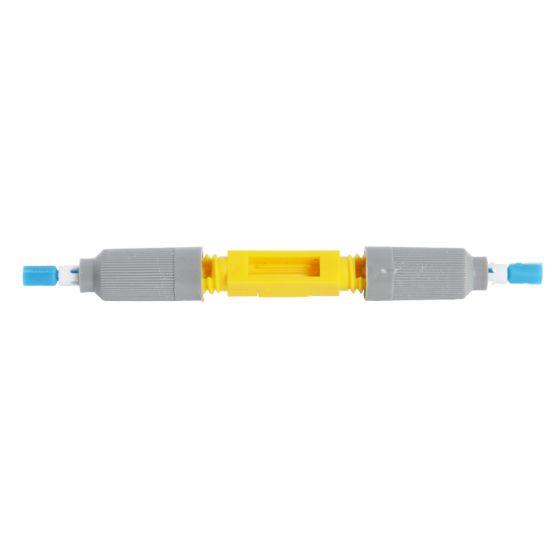

FIB Universal ULTRAsplice Singlemode or Multimode

FIB Universal ULTRAsplice Singlemode or Multimode

• The ULTRAsplice is for 125um clad fiber in singlemode and multimode applications. The splice accepts any combination of buffer sizes from 250um to 900um. Average loss is less than .2dBwith a fiber retention of over 2 lbs.
• Cleave and insert fibers while checking location in the glass capillary, secure by twisting a locking nut.
• The patented ULTRAsplice is a high performance, cost effective, mechanical fiber optic splice that is reusable and easy to install for emergency or permanent installations.
• The splice features a patented glass capillary alignment tube, pre-loaded with index matching gel, to allow inspection of fiber location during installation. Additionally, the collet locking nuts allow users to adjust and secure the fiber for optimum alignment and retention.
• The ULTRASplice is a fully mechanical fiber optic splice for singlemode and multimode splicing. No fixtures or special tools are required and they are tunable and reusable.

The ULTRAsplice Universal Mechanical Splice provides you with a high performance, easy to install, tunable and reusable fiber optic mechanical splice that is suitable for both emergency and permanent fiber optic installations.

Universal Mechanical Splice accepts any combination of buffer sizes from 250μm-900μm. Average loss is less than .2dB with a fiber retention of over 2 lbs.

You will find that installing this Fiber Optic Mechanical Splice is simple and no special tools are required. You simply cleave and insert the optical fibers, then while visibly checking the optical fiber location through the glass capillary of the mechanical splice, secure the fiber by twisting a locking nut.

Universal Mechanical Splice has been awarded an I.B.M. Code number for both the Singlemode and Multimode versions. US-126 is IBM #33G8228. Universal Mechanical Splice meets and exceeds Telcordia specifications. (Also available in specialty fiber sizes).
