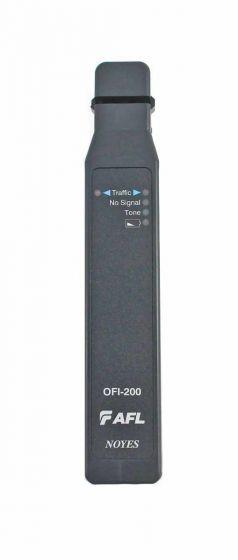

AFL Optical Fiber Identifier

AFL Optical Fiber Identifier

• 5-Year Product Warranty
• 3-Year Recommended Calibration Interval
• One hand operation
• Drop-proof design
• Unique two-position head
• Low insertion loss
• Detects 2 kHz Tones, Traffic or CW signals
• Indicates optical signal direction
• Low Battery Indicator
• Automatic power down for long battery life

Rugged, hand-held, and easy-to-use fiber optic test instrument designed to detect optical signals transmitted through a single-mode fiber without disrupting traffic on that fiber. During installation, maintenance, rerouting, or restoration it is often necessary to isolate a specific fiber. By simply clamping an Optical Fiber Identifier onto a fiber, the unit will indicate if there is NO SIGNAL, TONE or TRAFFIC and the associated signal direction. It allows technical personnel to unambiguously identify a specific fiber and eliminates the risk of accidental disruption of revenue service.

The OFI-200 is equipped with a unique two-position head design that can be configured, without tools or recalibration, to work with 250 μm, 900 μm, ribbon or jacketed fiber. The slim design of the head is particularly valuable when working in splice trays, cabinets and pedestals where work space is limited.
